Spring boot 게시판 API 서버 제작 (15) - 게시판 - 카테고리 - 웹 계층 구현

이번에는 Category API 처리를 위한 웹 계층을 구현해보겠습니다.



Category Controller

@RestController
@RequiredArgsConstructor
public class CategoryController {

    private final CategoryService categoryService;

    @GetMapping("/api/categories")
    @ResponseStatus(HttpStatus.OK)
    public Response readAll(){ // 모든 카테고리 조회
        return Response.success(categoryService.readAll());
    }

    @PostMapping("/api/categories")
    @ResponseStatus(HttpStatus.CREATED)
    //@Valid: 요청받은 데이터 유효성 검사
    //@RequestBody : Http 요청의 body 부분
    public Response create(@Valid @RequestBody CategoryCreateRequest req) {
        categoryService.create(req);
        return Response.success();
    }

    @DeleteMapping("/api/categories/{id}")
    @ResponseStatus(HttpStatus.OK)
    //@PathVariable : 경로에 포함된 카테고리 ID 추출
    public Response delete(@PathVariable Long id){
        categoryService.delete(id);
        return Response.success();
    }
}

코드에 대한 설명은 코드 내부 주석 처리를 참고해주세요.



Security Config 설정

@Override
protected void configure(HttpSecurity http) throws Exception {
        http
            .httpBasic().disable() // HTTP Basic 인증을 사용하지
            .formLogin().disable() // Form 로그인을 사용하지 않음
            .csrf().disable() // CSRF 공격으로부터 보호하지 않음
            .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS) // 세션을 사용하지 않음
                .and()
                .authorizeRequests() // 요청에 대한 인가를 구성
                .antMatchers(HttpMethod.POST, "/api/sign-in", "/api/sign-up", "/api/refresh-token").permitAll()
                .antMatchers(HttpMethod.GET, "/api/**").permitAll()
                .antMatchers(HttpMethod.DELETE, "/api/members/{id}/**").access("@memberGuard.check(#id)")
                .antMatchers(HttpMethod.POST, "/api/categories/**").hasRole("ADMIN")
                .antMatchers(HttpMethod.DELETE, "/api/categories/**").hasRole("ADMIN")
                .anyRequest().hasAnyRole("ADMIN")
                .and()
                .exceptionHandling().accessDeniedHandler(new CustomAccessDeniedHandler()) // 엑세스 거부 예외
            .and()
                .exceptionHandling().authenticationEntryPoint(new CustomAuthenticationEntryPoint())
            .and()
                .addFilterBefore( // JwtAuthenticationFilter 를 UsernamePasswordAuthenticationFilter 앞에 등록
                        new JwtAuthenticationFilter(accessTokenHelper, userDetailsService) //JWT 토큰 기반 인증
                        , UsernamePasswordAuthenticationFilter.class
                );
}

POST, DELETE /api/categories/** 요청은 ADMIN 권한에서만 가능합니다. ADMIN 권한을 확인은 JwtAuthenticationFilter을 거쳐서 컨테스트에 저장된 권한 및 인증정보를 비교를 통해 이루어집니다.



CategoryController TEST

테스트 내용은 이전과 동일하니 설명 생략합니다.

CategoryControllerTest.java

@ExtendWith(MockitoExtension.class)
class CategoryControllerTest {
    @InjectMocks
    CategoryController categoryController;
    @Mock
    CategoryService categoryService;
    MockMvc mockMvc;
    ObjectMapper objectMapper = new ObjectMapper();

    @BeforeEach
    void beforeEach() {
        mockMvc = MockMvcBuilders.standaloneSetup(categoryController).build();
    }

    @Test
    void readAllTest() throws Exception {
        // given, when, then
        mockMvc.perform(get("/api/categories"))
                .andExpect(status().isOk());
        verify(categoryService).readAll();
    }

    @Test
    void createTest() throws Exception {
        // given
        CategoryCreateRequest req = createCategoryCreateRequest();

        // when, then
        mockMvc.perform(
                        post("/api/categories")
                                .contentType(MediaType.APPLICATION_JSON)
                                .content(objectMapper.writeValueAsString(req)))
                .andExpect(status().isCreated());

        verify(categoryService).create(req);
    }

    @Test
    void deleteTest() throws Exception {
        // given
        Long id = 1L;

        // when, then
        mockMvc.perform(
                        delete("/api/categories/{id}", id))
                .andExpect(status().isOk());
        verify(categoryService).delete(id);
    }
}



CategoryControllerAdviceTest.java

@ExtendWith(MockitoExtension.class)
class CategoryControllerAdviceTest {
    @InjectMocks CategoryController categoryController;
    @Mock CategoryService categoryService;
    MockMvc mockMvc;

    @BeforeEach
    void beforeEach() {
        mockMvc = MockMvcBuilders.standaloneSetup(categoryController).setControllerAdvice(new ExceptionAdvice()).build();
    }

    @Test
    void readAllTest() throws Exception {
        // given
        given(categoryService.readAll()).willThrow(CannotConvertNestedStructureException.class);

        // when, then
        mockMvc.perform(get("/api/categories"))
                .andExpect(status().isInternalServerError())
                .andExpect(jsonPath("$.code").value(-1011));
    }

    @Test
    void deleteTest() throws Exception {
        // given
        doThrow(CategoryNotFoundException.class).when(categoryService).delete(anyLong());

        // when, then
        mockMvc.perform(delete("/api/categories/{id}", 1L))
                .andExpect(status().isNotFound())
                .andExpect(jsonPath("$.code").value(-1010));
    }
}



CategoryControllerIntegrationTest.java

@SpringBootTest
@AutoConfigureMockMvc
@ActiveProfiles(value = "test")
@Transactional
public class CategoryControllerIntegrationTest {
    @Autowired WebApplicationContext context;
    @Autowired MockMvc mockMvc;

    @Autowired TestInitDB initDB;
    @Autowired CategoryRepository categoryRepository;
    @Autowired MemberRepository memberRepository;
    @Autowired SignService signService;
    ObjectMapper objectMapper = new ObjectMapper();

    @BeforeEach
    void beforeEach() {
        mockMvc = MockMvcBuilders.webAppContextSetup(context).apply(springSecurity()).build();
        initDB.initDB();
    }

    @Test
    void readAllTest() throws Exception {
        // given, when, then
        mockMvc.perform(
                get("/api/categories"))
                .andExpect(status().isOk());
    }

    @Test
    void createTest() throws Exception {
        // given
        CategoryCreateRequest req = createCategoryCreateRequest();
        SignInResponse adminSignInRes = signService.signIn(createSignInRequest(initDB.getAdminEmail(), initDB.getPassword()));
        int beforeSize = categoryRepository.findAll().size();

        // when, then
        mockMvc.perform(
                post("/api/categories")
                        .header("Authorization", adminSignInRes.getAccessToken())
                        .contentType(MediaType.APPLICATION_JSON)
                        .content(objectMapper.writeValueAsString(req)))
                .andExpect(status().isCreated());

        List<Category> result = categoryRepository.findAll();
        assertThat(result.size()).isEqualTo(beforeSize + 1);
    }

    @Test
    void createUnauthorizedByNoneTokenTest() throws Exception {
        // given
        CategoryCreateRequest req = createCategoryCreateRequest();

        // when, then
        mockMvc.perform(
                post("/api/categories")
                        .contentType(MediaType.APPLICATION_JSON)
                        .content(objectMapper.writeValueAsString(req)))
                .andExpect(status().is3xxRedirection())
                .andExpect(redirectedUrl("/exception/entry-point"));
    }

    @Test
    void createAccessDeniedByNormalMemberTest() throws Exception {
        // given
        CategoryCreateRequest req = createCategoryCreateRequest();
        SignInResponse normalMemberSignInRes = signService.signIn(createSignInRequest(initDB.getMember1Email(), initDB.getPassword()));

        // when, then
        mockMvc.perform(
                post("/api/categories")
                        .header("Authorization", normalMemberSignInRes.getAccessToken())
                        .contentType(MediaType.APPLICATION_JSON)
                        .content(objectMapper.writeValueAsString(req)))
                .andExpect(status().is3xxRedirection())
                .andExpect(redirectedUrl("/exception/access-denied"));
    }

    @Test
    void deleteTest() throws Exception {
        // given
        Long id = categoryRepository.findAll().get(0).getId();
        SignInResponse adminSignInRes = signService.signIn(createSignInRequest(initDB.getAdminEmail(), initDB.getPassword()));

        // when, then
        mockMvc.perform(delete("/api/categories/{id}", id)
                    .header("Authorization", adminSignInRes.getAccessToken()))
                .andExpect(status().isOk());

        List<Category> result = categoryRepository.findAll();
        assertThat(result.size()).isEqualTo(0);
    }

    @Test
    void deleteUnauthorizedByNoneTokenTest() throws Exception {
        // given
        Long id = categoryRepository.findAll().get(0).getId();

        // when, then
        mockMvc.perform(delete("/api/categories/{id}", id))
                .andExpect(status().is3xxRedirection())
                .andExpect(redirectedUrl("/exception/entry-point"));
    }

    @Test
    void deleteAccessDeniedByNormalMemberTest() throws Exception {
        // given
        Long id = categoryRepository.findAll().get(0).getId();
        SignInResponse normalMemberSignInRes = signService.signIn(createSignInRequest(initDB.getMember1Email(), initDB.getPassword()));

        // when, then
        mockMvc.perform(delete("/api/categories/{id}", id)
                    .header("Authorization", normalMemberSignInRes.getAccessToken()))
                .andExpect(status().is3xxRedirection())
                .andExpect(redirectedUrl("/exception/access-denied"));
    }
}



TestInitDB.java

@Component //bean으로 등록
public class TestInitDB {
    @Autowired RoleRepository roleRepository;
    @Autowired MemberRepository memberRepository;
    @Autowired PasswordEncoder passwordEncoder;

    @Autowired CategoryRepository categoryRepository;

    private String adminEmail = "admin@admin.com";
    private String member1Email = "member1@member.com";
    private String member2Email = "member2@member.com";
    private String password = "123456a!";

    @Transactional
    public void initDB() {
        initRole(); // RoleType enum의 모든 값을 role에 저장
        initTestAdmin(); //관리자 계정 추가
        initTestMember(); // 멤버 계정 추가
        initCategory();
    }

    private void initRole() {
        roleRepository.saveAll(
                List.of(RoleType.values()).stream().map(roleType -> new Role(roleType)).collect(Collectors.toList())
        );
    }

    private void initTestAdmin() {
        memberRepository.save(
                new Member(adminEmail, passwordEncoder.encode(password), "admin", "admin",
                        List.of(roleRepository.findByRoleType(RoleType.ROLE_NORMAL).orElseThrow(RoleNotFoundException::new),
                                roleRepository.findByRoleType(RoleType.ROLE_ADMIN).orElseThrow(RoleNotFoundException::new)))
        );
    }

    private void initTestMember() {
        memberRepository.saveAll(
                List.of(
                        new Member(member1Email, passwordEncoder.encode(password), "member1", "member1",
                                List.of(roleRepository.findByRoleType(RoleType.ROLE_NORMAL).orElseThrow(RoleNotFoundException::new))),
                        new Member(member2Email, passwordEncoder.encode(password), "member2", "member2",
                                List.of(roleRepository.findByRoleType(RoleType.ROLE_NORMAL).orElseThrow(RoleNotFoundException::new))))
        );
    }

    private void initCategory() {
        Category category1 = new Category("category1", null);
        Category category2 = new Category("category2", category1);
        categoryRepository.saveAll(List.of(category1, category2));
    }


    public String getAdminEmail() {
        return adminEmail;
    }

    public String getMember1Email() {
        return member1Email;
    }

    public String getMember2Email() {
        return member2Email;
    }

    public String getPassword() {
        return password;
    }
}

API 테스트

API테스트를 하기전에 Test를 위해 TestInitDB에 Category를 추가한 것처럼 InitDB에도 똑같이 추가해주겠습니다.

InitDB

@EventListener(ApplicationReadyEvent.class)
    @Transactional
    public void initDB(){
        log.info("initialize database");
        initRole();
        initTestAdmin();
        initTestMember();
        initCategory();
    }

    private void initRole(){
        roleRepository.saveAll( // 모든 Role_Type role에 저장
                List.of(RoleType.values()).stream().map(roleType -> new Role(roleType)).collect(Collectors.toList())
        );
    }

    private void initTestAdmin() {
        memberRepository.save(
                new Member("admin@admin.com", passwordEncoder.encode("123456a!"), "admin", "admin",
                        List.of(roleRepository.findByRoleType(RoleType.ROLE_NORMAL).orElseThrow(RoleNotFoundException::new),
                                roleRepository.findByRoleType(RoleType.ROLE_ADMIN).orElseThrow(RoleNotFoundException::new)))
        );
    }

    private void initTestMember() {
        memberRepository.saveAll(
                List.of(
                        new Member("member1@member.com", passwordEncoder.encode("123456a!"), "member1", "member1",
                                List.of(roleRepository.findByRoleType(RoleType.ROLE_NORMAL).orElseThrow(RoleNotFoundException::new))),
                        new Member("member2@member.com", passwordEncoder.encode("123456a!"), "member2", "member2",
                                List.of(roleRepository.findByRoleType(RoleType.ROLE_NORMAL).orElseThrow(RoleNotFoundException::new))))
        );
    }

    private void initCategory() {
        Category c1 = categoryRepository.save(new Category("category1", null));
        Category c2 = categoryRepository.save(new Category("category2", c1));
        Category c3 = categoryRepository.save(new Category("category3", c1));
        Category c4 = categoryRepository.save(new Category("category4", c2));
        Category c5 = categoryRepository.save(new Category("category5", c2));
        Category c6 = categoryRepository.save(new Category("category6", c4));
        Category c7 = categoryRepository.save(new Category("category7", c3));
        Category c8 = categoryRepository.save(new Category("category8", null));
    }
}

이제 모든 준비가 끝났으니 Postman을 통해 API 요청을 해보겠습니다.

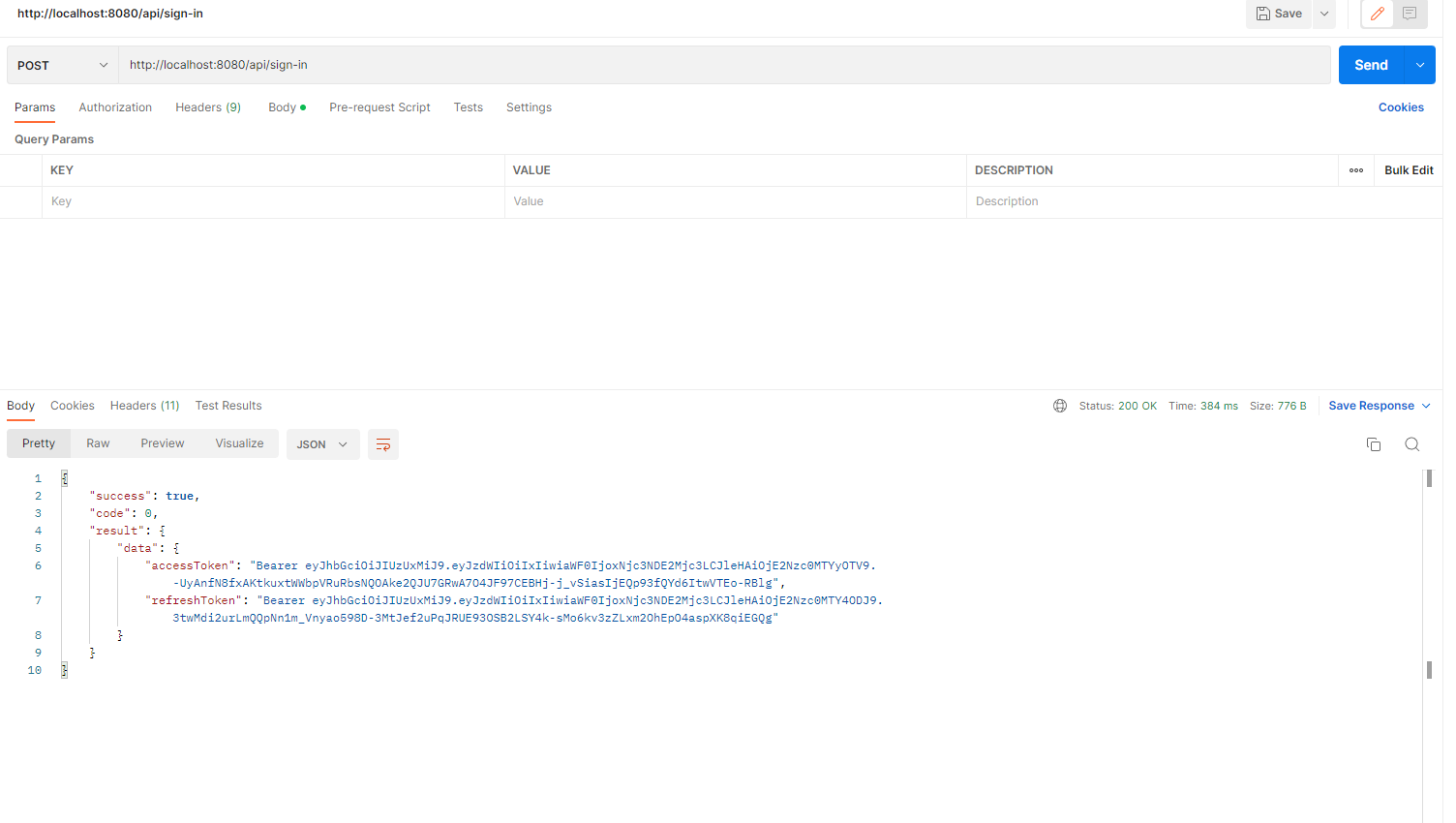

sign-in

로그인을 하게되면 access token과 refresh token을 발급받는데, 관리자 계정으로 로그인하여 관리자 access token을 발급 받습니다.

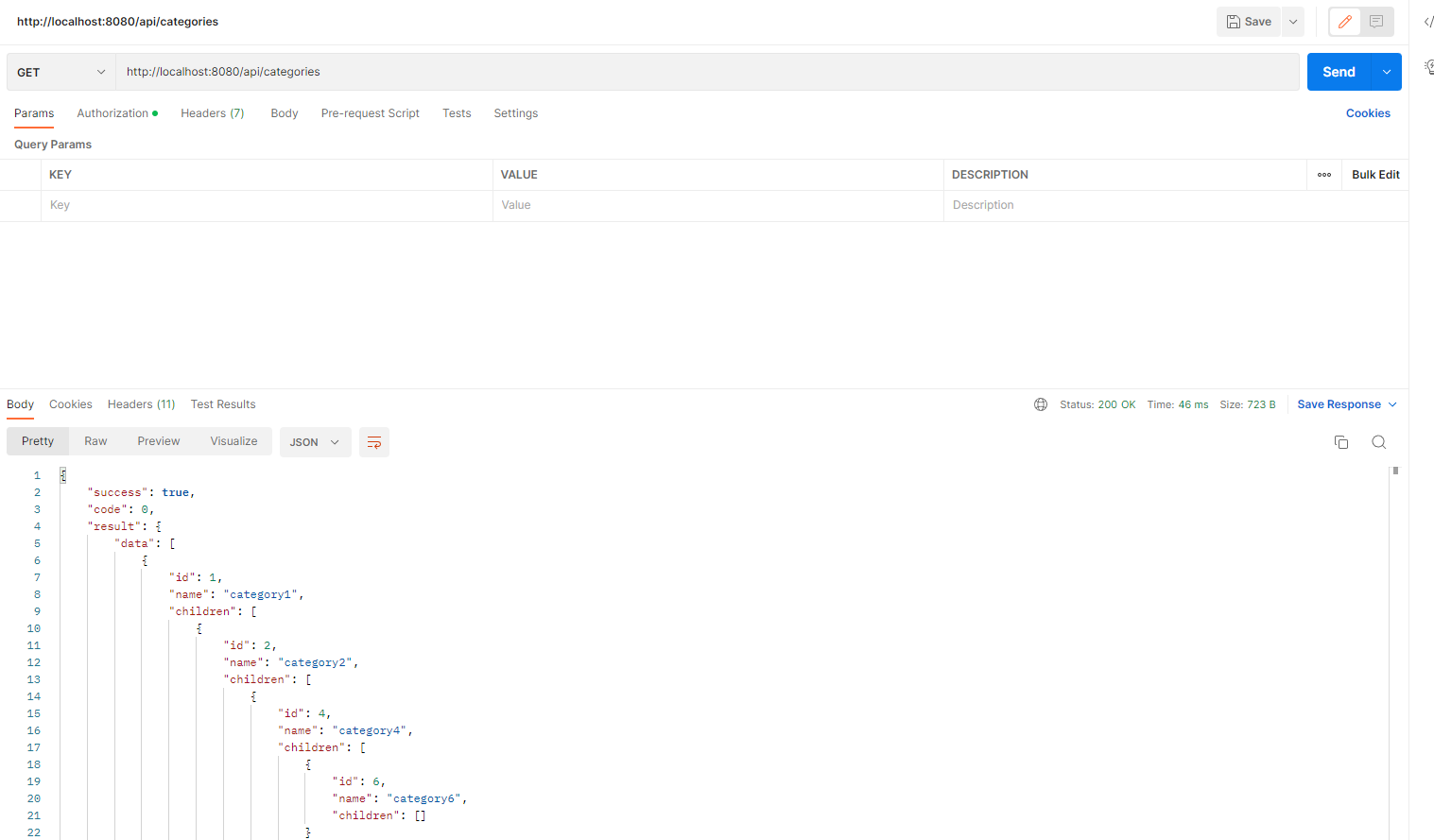

[GET] /api/categories

먼저 GET /api/categories 요청을 하여 category들을 모두 읽습니다. GET요청에는 access token 이 필요 없습니다.

InitDB에서 저장한 category와 일치하는 것을 확인할 수 있습니다.

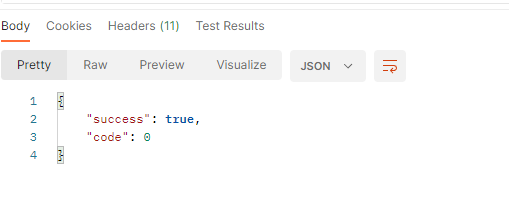

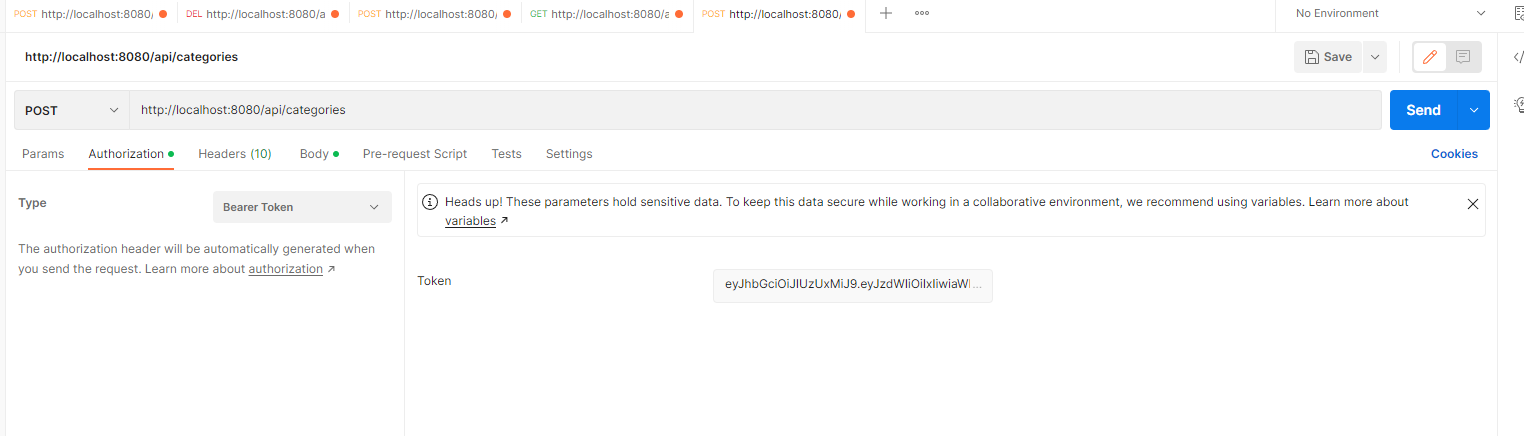

[POST] /api/categories

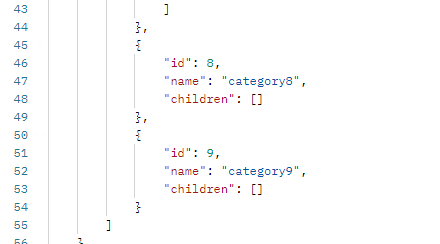

이번에는 category9를 추가해 보겠습니다.

POST /api/categories 요청을 통해 category를 추가하는데 postman에서 설정해줘야 할 것들이 있습니다.

1. 먼저 로그인을 하고 나서 받은 access token을 Authorization에 넣습니다.

2.body 태그에서 category 로직에 맞춰 내용을 작성합니다.

send를 누르면 다음과 같이 success 화면을 볼 수 있습니다.

3.결과 확인

다시 [GET] /api/categories 요청을 하면 category9가 추가된 것을 확인할 수 있습니다.

---

궁금한신점이나 잘못된 부분이 있으면 자유롭게 댓글 달아주세요.

github : https://github.com/jaeyeon423/spring_board_api
